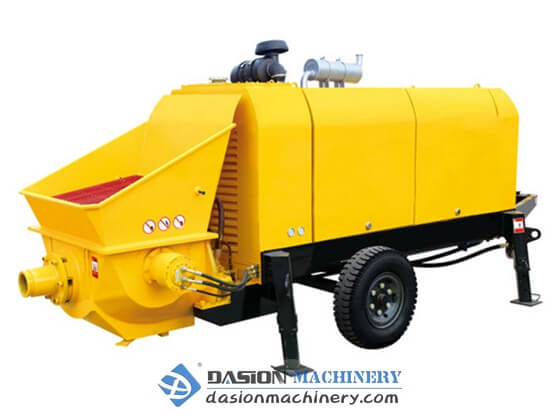

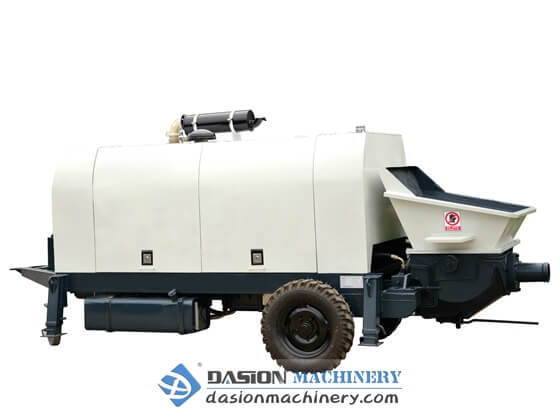

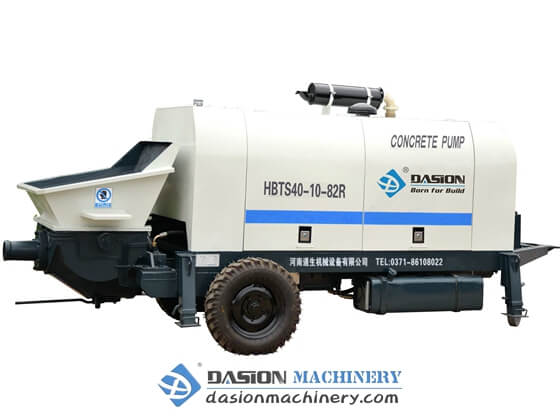

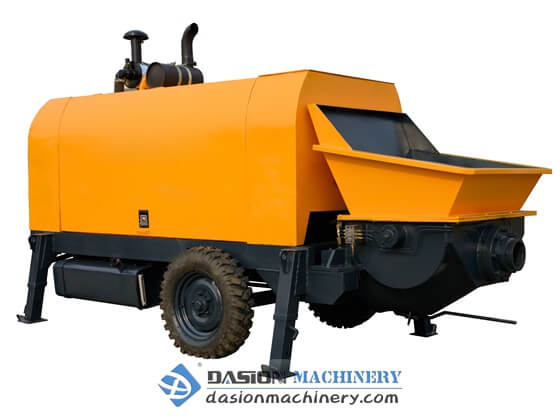

    DHBT Diesel Engine Concrete Trailer Pump
    Hopper capacity : 600L
    Diesel engine power : 118Kw 145Kw 145Kw 174Kw
    Max. Theoretic delivery volume : 60m³/h 60m³/h 80m³/h 80m³/h
    Max. Theoretic delivery pressure : 12.5Mpa 15.7Mpa 12.5Mpa 15.7Mpa
    Max. Theoretic delivery height : 180m 250m 180m 250m
    Max. Theoretic delivery distance : 700m 1000m 700m 1000m
    Share with:
    Product Parameter
    Product Features
    Engineering Case
    Parameters of DHBT Diesel Engine Concrete Trailer Pump

    Items Units DHBT60-13-118 DHBT60-16-145 DHBT80-13-145 DHBT80-16-174
    Max. Theoretic delivery volume m³/h 60 60 80 80
    Max. Theoretic delivery pressure Mpa 12.5 15.7 12.5 15.7
    Max. Theoretic delivery height m 180 250 180 250
    Max. Theoretic delivery distance m 700 1000 700 1000
    Type of distribution valve   S valve S valve S valve S valve
    Hopper capacity L 600 600 600 600
    Inner diameter of delivery pipe mm Φ125 Φ125 Φ125 Ф125
    Diesel engine power Kw 118 145 145 174
    Max. Oil pressure of main system MPa 32 32 32 32
    Max. Oil pressure of mixing system MPa 14 14 14 14
    Dimension (length ×width ×height) mm 6600×1930×2190 6600×1930×2190 6600×1930×2190 6600×1930×2190
    Overall weight Kg 5500 6000 6000 6500

    Shipment of DHBT Diesel Concrete Trailer Pump




    Brief Introduction of Diesel Engine Concrete Trailer Pump:
    Concrete trailer pumps are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities etc.
    Concrete trailer pumps are also used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects.
    The hydraulic system adopts double-pump double-circuit, and the pumping unit adopts the original high-pressure and large displacement variable oil pump.

    Features and Advantages of Diesel Concrete Trailer Pump::
    0
    High efficient hydraulic system with new high-speed commutation mode, which makes the pump commutation efficiency increase by 12%.
    0
    Large displacement pumping system makes the suction efficiency increased by 6%, to meet the needs of a variety of working conditions.
    0
    Overall hydraulic reversing open system has the advantage of high cleanliness of hydraulic oil, low oil temperature and small impact on commutation.
    0
    Master cylinder seal adopts waterproof technology, which can effectively prevent water from entering the hydraulic system, to prevent hydraulic oil emulsification.
    0
    Advanced S tube valve enjoys the advantages of good sealing, while quick-wear parts are economic and durable, easy to replace.
    0
    Hydraulic and electrical main components use internationally renowned brands with high reliability.
    More Details Of DHBT Diesel Engine Concrete Trailer Pump:
