Technical Parameters Of Belt Type Concrete Batching Plant

Model	HZS60	HZS90	HZS120	HZS150	HZS180
Capacity	60m3/h	90m3/h	120m3/h	150m3/h	180m3/h
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Belt conveyor
Discharging height	3900mm	3900mm	3900mm	4000mm	4000mm
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Concrete mixer	YJS1000	YJS1500/ SICOMA MAO2250/1500	YJS2000/ SICOMA MAO3000/2000	YJS3000/ SICOMA MAO4500/3000	SICOMA MAO6000/4000
Discharging volume	1000L	1500L	2000L	3000L	4000L
Charging volume	1500L	2250L	3000L	4500L	6000L
Mixing cycle	60s	60s	60s	60s	60s
Max. mixing size	100/80mm	100/80mm	100/80mm	120/80mm	120/80mm
Aggregate batching machine	PLD2400/ PLD1600	PLD2400	PLD3200	PLD4800	PLD4800
Storage bins quantity	3 or 4 sorts	4 sorts	4 sorts	4 sorts	4 sorts
Aggregate scale hopper	2400L/1600L	2400L	3200L	4800L	4800L
Aggregate feeding to mixer by	Belt conveyor
Measurement precision	±2%	±2%	±2%	±2%	±2%
Cement silo capacity	50t/100t	100t	100t/200t	100t/200t	100t/200t

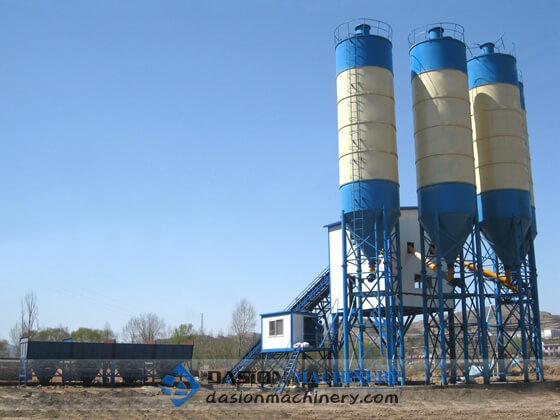

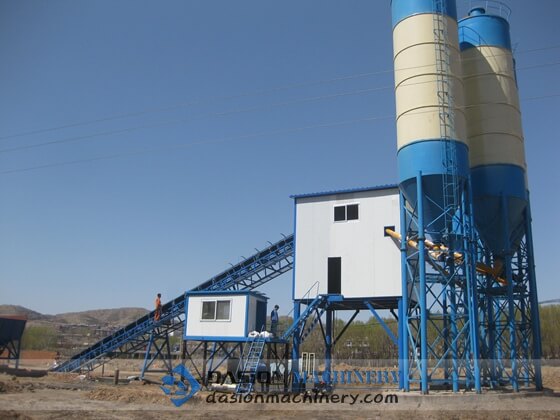

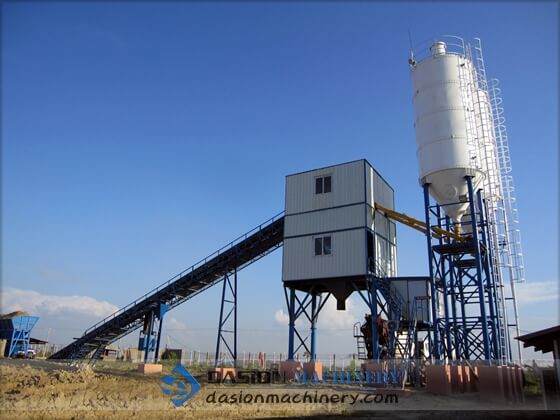

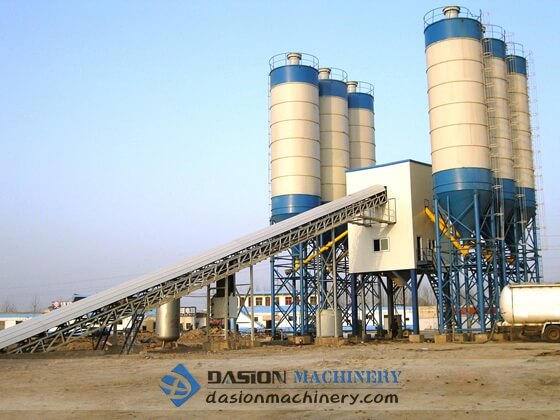

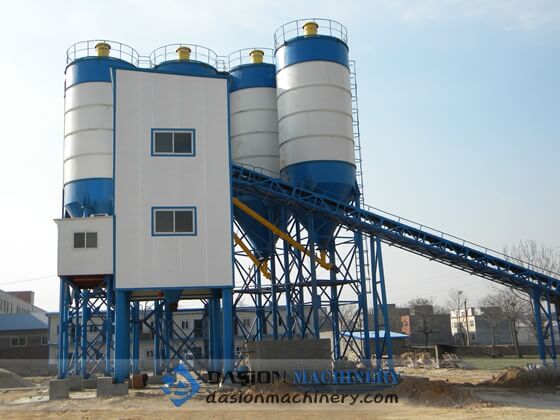

Brief Introduction Of Belt Type Concrete Batching Plant:

DASION belt type concrete batching plant consists of material batching, concrete mixing and electric control system, etc. It is automatic intellective concrete mixing equipment, but use small area and easily maintenance.
DASION assemble high performance separated control room, which includes control panel, power cabinet, air conditioner, Printer, etc. That will make the plant operation easily, safe and speedy, but also produce high quality concrete because of more accurate material measurement.
DASION concrete batching plant is widely used in big and medium construction projects, road, bridge project, and concrete prefabrication factory.
Belt concrete mixing plant can well mix dry concrete, semi-dry concrete, plastic concrete (etc) in certain time.

Features And Benefits Of Belt Concrete Batching Plant:

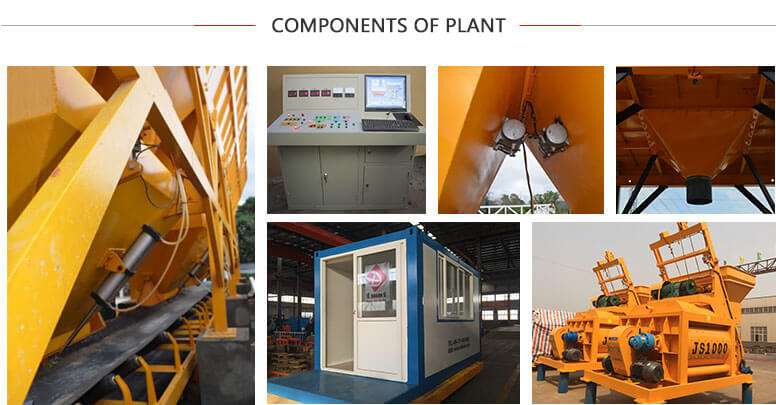

Mixing system choose twin-shaft forced concrete mixer, which has high efficiency and good mixing quality, scale board and mixing blades adopts high-rigidity and high tenacity wearable alloy steel, to prolong the working life.

Scale components of measurement system are all from famous brand, computer controlled to ensure the weighing accurate and reliable performance, so that it can also meet the requirement of every high performance good concrete.

Aggregate feeding system adopts Belt Conveyor, can be assembled rainproof and tighten device for belt. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.

Control system ensures the high simple and reliability, human-based intelligent control facilitates the continuously producing, but with dynamic display panel to make the operator clearly know the operation of each part.

Assemble sidewalk and ladders for every maintenance and service part, assemble high-pressure water flushing device for concrete mixer clean, good maintainability.

All of powder material is feeding, batching, unloading, mixing in closed space., reduce the pollution to environment. Assemble dust-remover in main mixing building, and also pack the mixing building and belt conveyor.

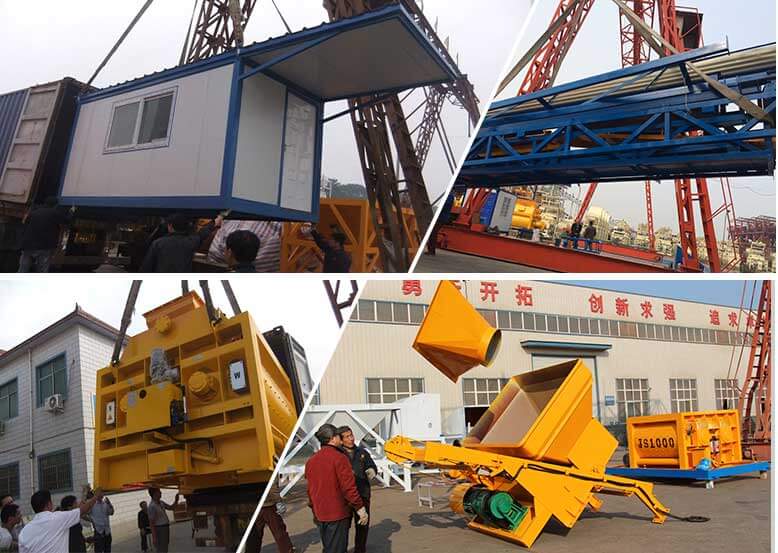

Shipment of Belt Concrete Batching Plant:
