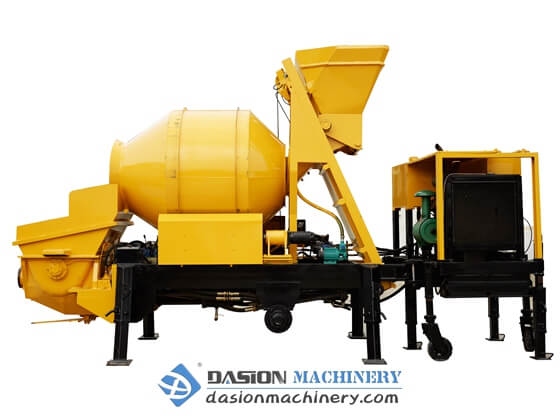

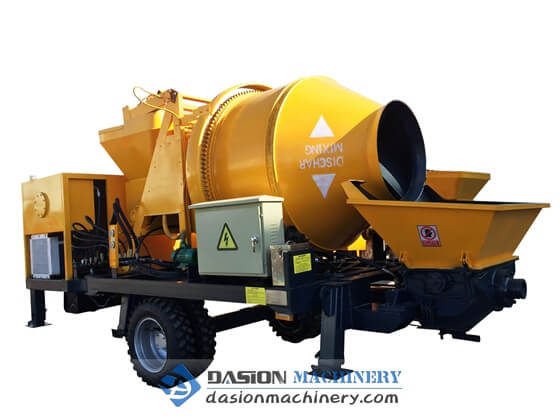

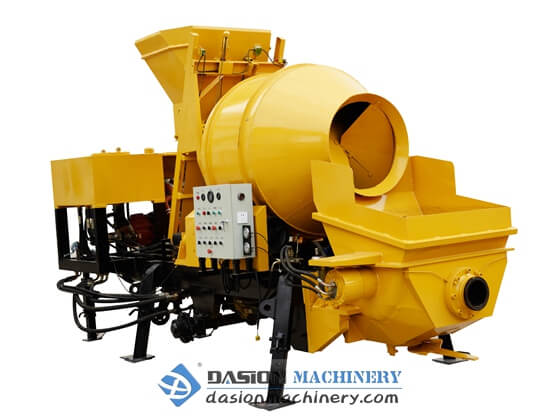

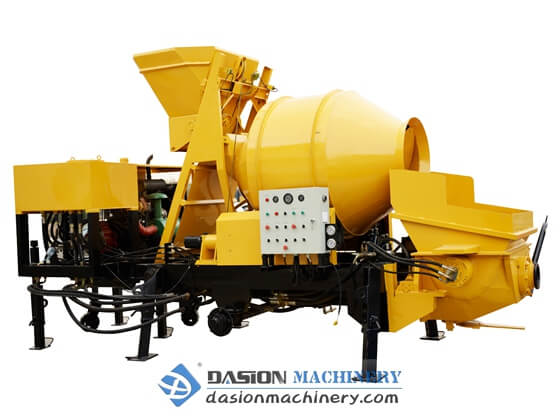

    DJBT Diesel Engine Concrete Mixer Pump
    Power type : Diesel
    Electric motor : 62kw 82kw
    Theoretical output : 30m3/h 40m3/h
    Max. concrete pumping pressure : 10 MPa
    Theoretical delivery distance : 120/350m 160/500m
    Total weight : 5500kg 6000kg
    Share with:
    Product Parameter
    Product Features

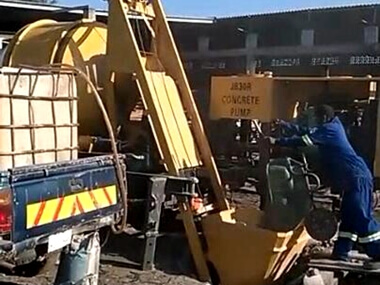

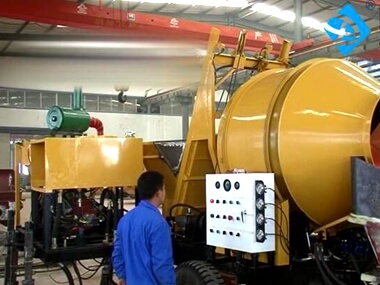

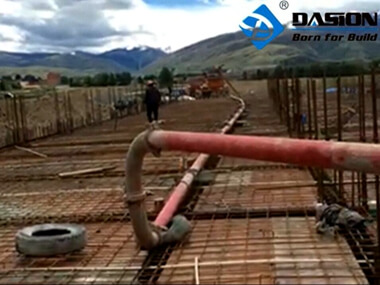

    Engineering Case
    Product Video
    Parameters Of DJBT Concrete Mixer Pump

    Item DJBT30 DJBT40
    Theoretical output (m3/h) 30 40
    Max. concrete pumping pressure (MPa) 10 10
    Power type Diesel Diesel
    Electric motor (kw) 62 82
    Main oil pump Jinda Kawasaki
    Main oil pump capacity (ml/min) 71 112
    Theoretical delivery distance (m) 120/350 160/500
    Hopper capacity (L) 550 550
    Max. aggregate diameter (mm) 20/30 30/40
    Inside diameter of delivery pipe (mm) Φ100 Φ150
    Loading capacity of the mixer (L) 560 720
    Unloading capacity of the mixer (L) 350 450
    Dimension: length x width x height 4800x2200x2800 6000x2200x2800
    Total weight (kg) 5500 6000

    Introduction Of Diesel Engine Concrete Mixer With Pump:
    DJBT concrete mixer pump combines the functions of concrete mixing and conveying. Be movable with types from one construction site to another. Be suitable for the small and middle-scale road and house projects. It can also work in the power shortage areas by equipped with generator set.
    Features Of Diesel Engine Concrete Mixer Pump:
    Adopt Open hydraulic system, which is with stable and reliable performance, low failure rate.
    Integration control for mixing and pumping, wireless remote control, which makes operation convenient.
    Specialized double doors for the electrical box, which is with dust proof, water proof and good sealed performance.
    Adopt wear-resistant alloy materials for the concrete mixer, prolong the service life.
    Equipped with double row tires, which can bear heavy weight, stand steady, and be towed on the rough road.

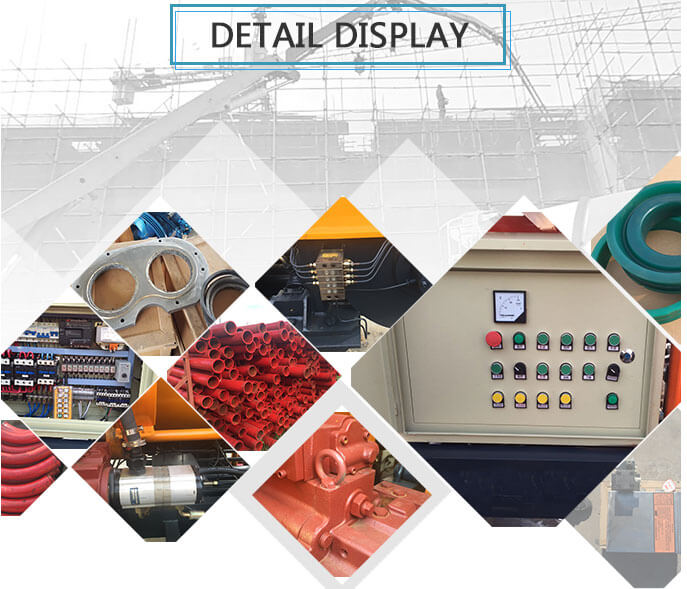

    Advantages Of DJBT Concrete Mixer Pump:
    Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
    Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.

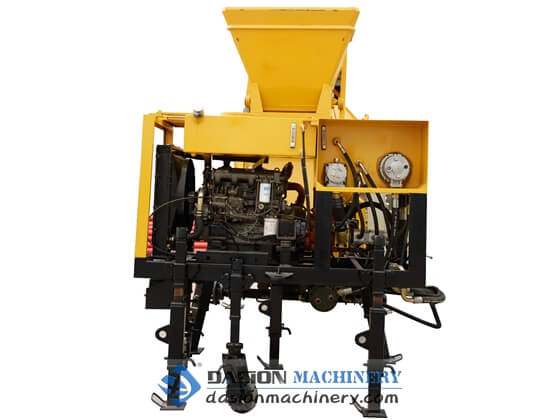

    Power system. Adopt domestic and world famous motor and diesel engine.
    Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
    Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
    Seal parts. Big oil cylinder’s seal components adopt American Parker.
    Hydraulic rubber hose joints. Adopt American Eaton, insures the safety and no leakage of hydraulic system.
    S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
    Glass plates and cut loops. Made of anti-wearing horniness alloy, has long service life.
    Concrete piston. Precisely processed by imported material, enjoys the features of hydrolytic resistant, wear resistant and high temperature resistant.
