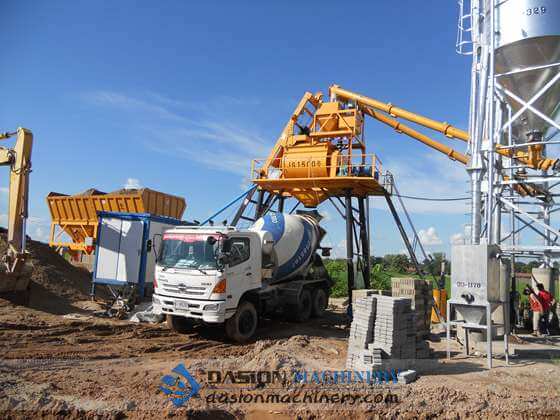

Bucket Type Concrete Batching Plant

Product Parameter

Product Features

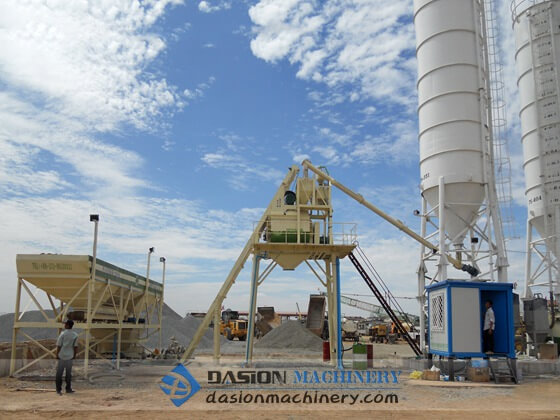

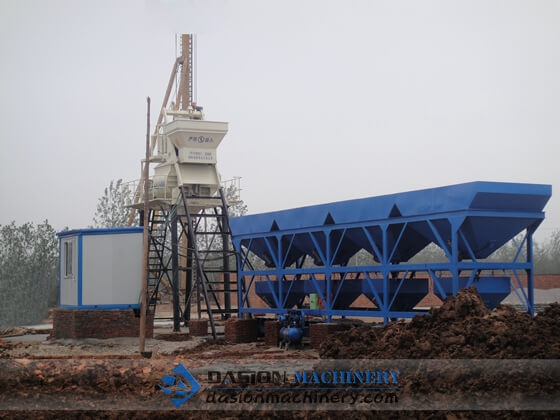

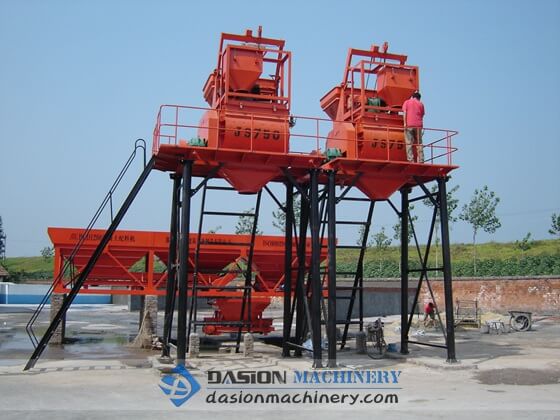

Engineering Case

Product Video

Configuration Of Bucket Type Concrete Batching Plant

Model	HZS25	HZS35	HZS50	HZS75
Capacity	25m3/h	35m3/h	50m3/h	75m3/h
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Bucket (Skip hopper)
Discharging height	1500-3800mm		3800mm	3800mm
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Concrete mixer	JS500	JS750	JS1000	JS1500
Discharging volume	500L	750L	1000L	1500L
Charging volume	800L	1200L	1600L	2400L
Mixing cycle	72s	72s	72s	72s
Max. mixing size	80/60mm	80/60mm	80/60mm	80/60mm
Aggregate batching machine	PLD800	PLD1200	PLD1600	PLD2400
Storage bins quantity	2 or 3 or 4 sorts	3 or 4 sorts	3 or 4 sorts	3 or 4 sorts
Aggregate scale hopper	800L	1200L	1600L	2400L
Aggregate feeding to mixer by	Bucket (Skip hopper)

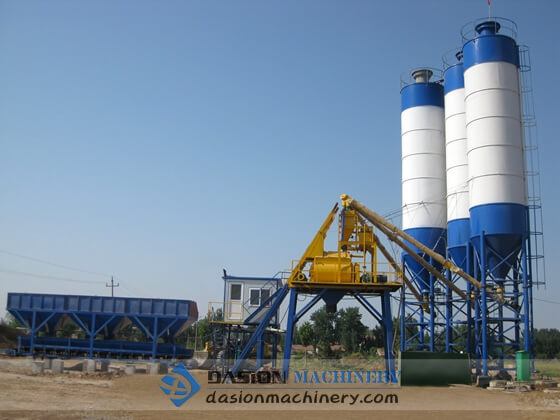

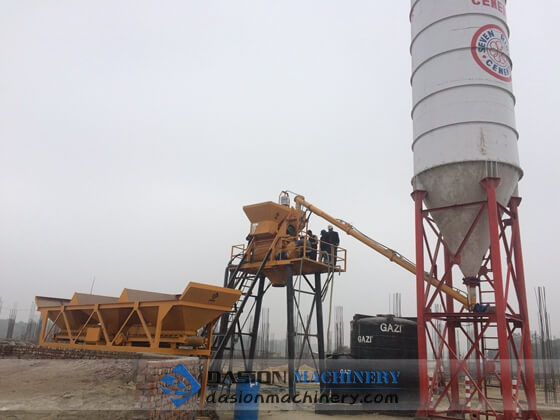

Brief Introduction Of DASION Bucket Type Concrete Batching Plant:

DASION Bucket type concrete batching plant consists of material feeding, material batching, concrete mixing and electric control system etc. Concrete batching plant is professional equipment for ready mix concrete production, such as plasticity and dry concrete.
Bucket concrete mixing plant is widely used in small and medium construction projects, such as road, bridge project, and concrete prefabrication factory.

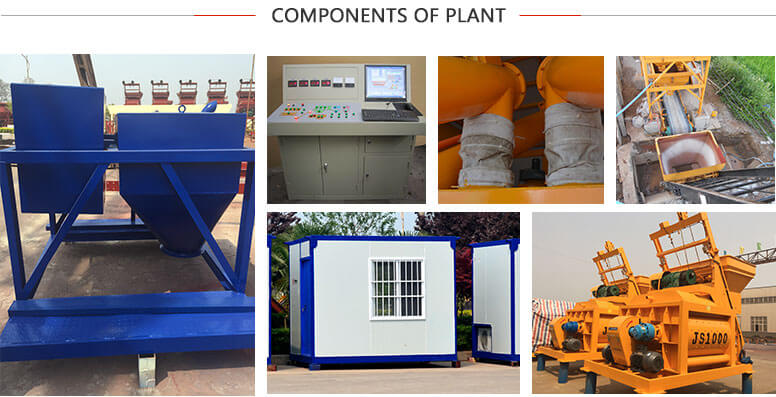

Features Of Bucket Concrete Mixing Plant:

Mixing system: adopt JS series Twin-shaft Concrete Mixer for high quality of mixing effect. Assemble ladder, sidewalk and handrail, easily for worker maintenance;

Cement system: adopt separated cement silo and screw conveyor for cement storage and feeding, bulk cement pump can be provided based on customers requirement;

Weighing and control system: adopt new-design of electrical weighing system, can work with computer, SIEMENS PLC, digital display, etc, which will make sure the measurement accurate and timely;

Air system: adopt high quality of air compressor, air pipe and air cylinder, easy installation and maintenance;

Aggregate feeding system: adopt Bucket (Skip Hopper), assemble self-locking hoist motor for bucket up and down, to avoid bucket falls down suddenly;

Concrete discharge height can be design to accommodate truck mixer/concrete pump/skip car.

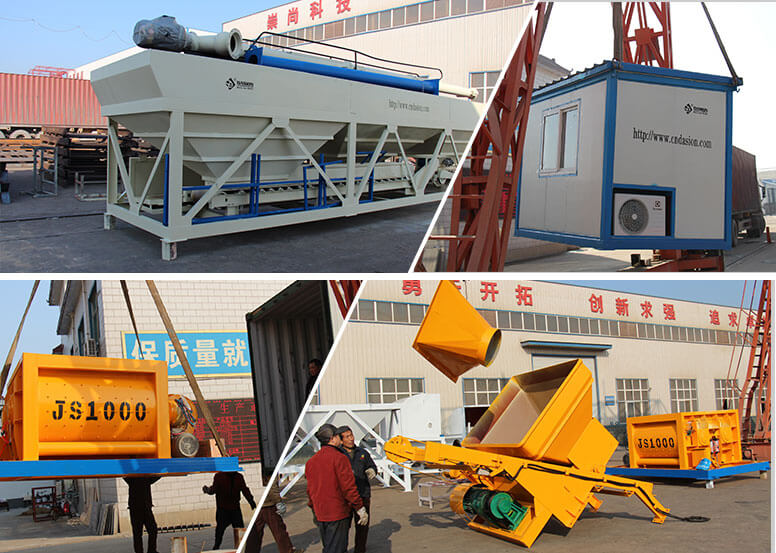

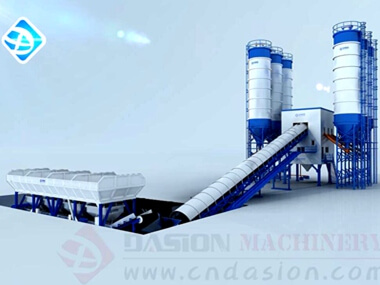

Shipment of Belt Concrete Batching Plant:
