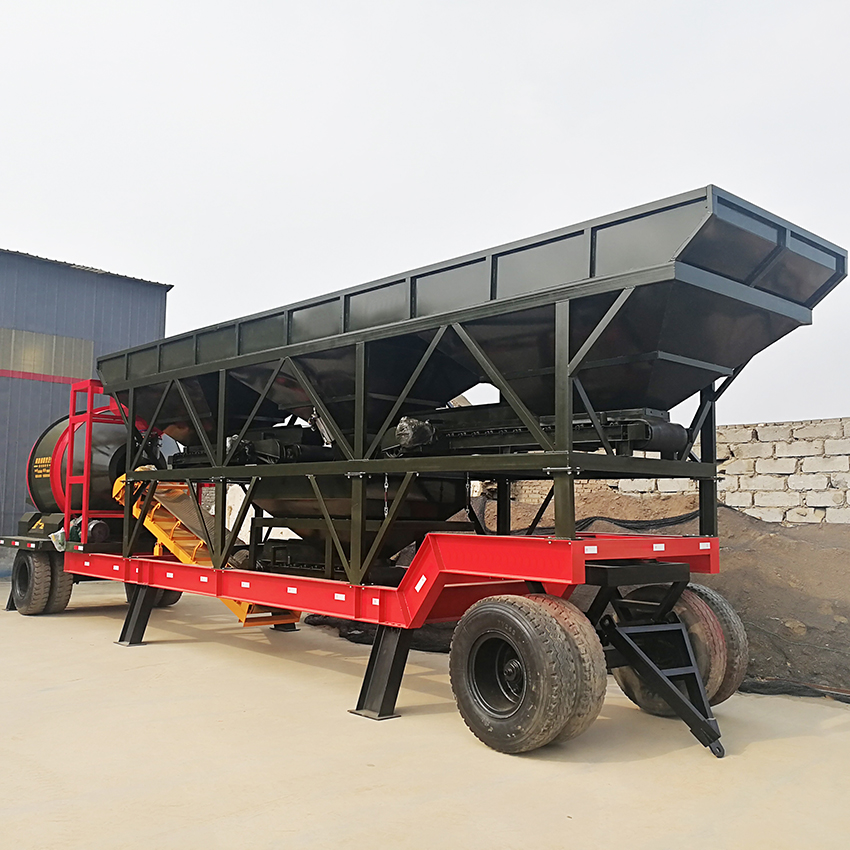

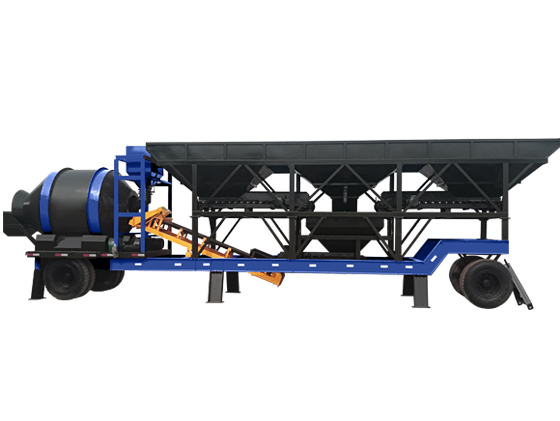

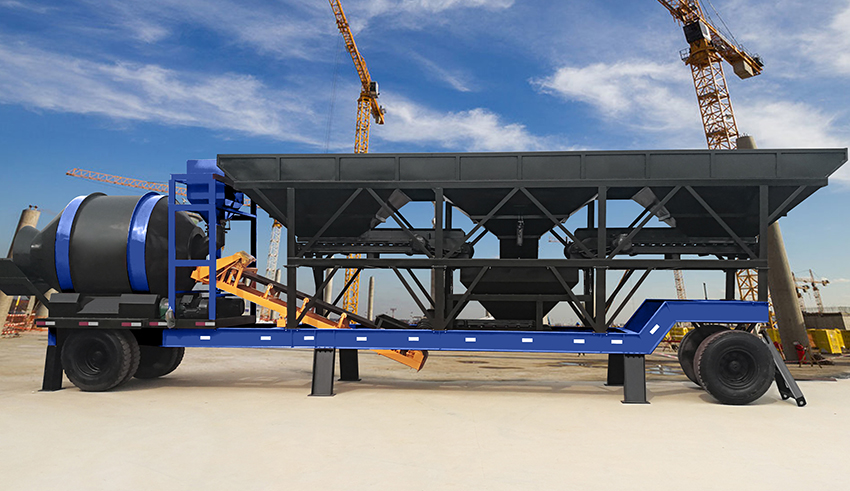

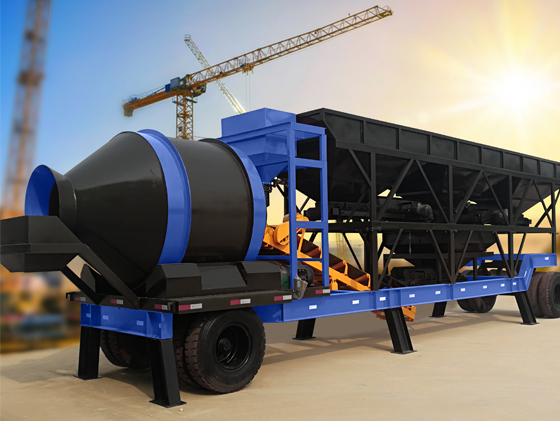

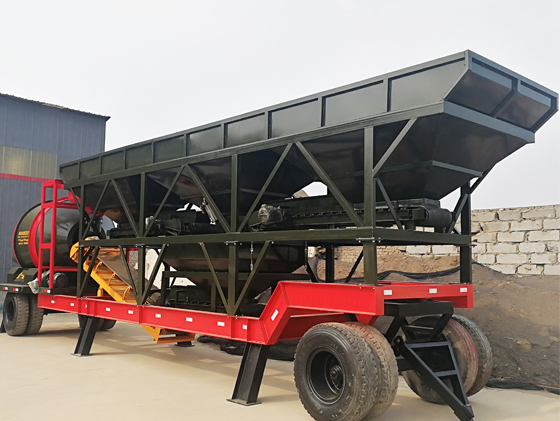

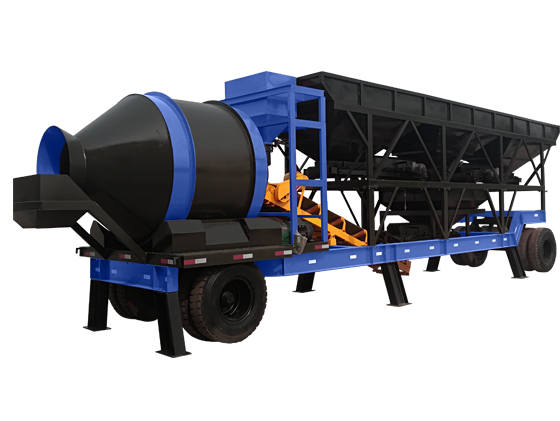

    Mobile Concrete Batching Plant
    Capacity : 25m3/h 30m3/h 35m3/h 50m3/h 60m3/h 75m3/h
    Mixing system : Drum concrete mixer/twin shaft mixer
    Max. dragging speed : 30km/h-48km/h
    Warranty : 12 months after erection
    Discharging height : 1300mm/3800mm
    Aggregate batching machine : PLD800 PLD1200 PLD1600 PLD2400
    Share with:
    Product Parameter
    Product Features
    Engineering Case
    Product Video
    Technical Parameters Of YHZM/YHZS Mobile Concrete Batching Plant

    Model Capacity Mixer Aggregate Machine Control Discharging Height Moving Speed
    YHZM30 30m3/hr JZM500 PLD1200 (2 bins) Electrical Semi-auto 1300mm 0-30km/h
    YHZM60 60m3/hr JZM1500 PLD1600 (2 or 3 bins)

    mobile concrete batching plant

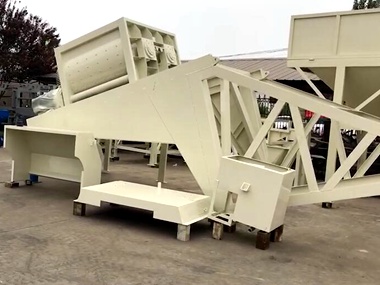

    Model YHZS25 YHZS35 YHZS50 YHZS75
    Capacity 25m3/h 35m3/h 50m3/h 75m3/h
    Max. dragging speed 40km/h 40km/h 40km/h 40km/h
    Discharging height 3800mm 3800mm 3800mm 3800mm
    Concrete mixer JS500 JS750 JS1000 JS2000
    Discharging volume 500L 750L 1000L 1200L
    Charging volume 800L 1200L 1500L 2250L
    Mixing circle 72s 72s 72s 72s
    Max. mixing size 80/60mm 80/60mm 80/60mm 80/60mm
    Aggregate batching machine PLD800 PLD1200 PLD1600 PLD2400
    Weighing precision ±1% ±1% ±1% ±1%


    mobile batching plant
    Brief Introduction Of Mobile Concrete Batching Plant:
    Mobile concrete batching plant with drum mixer/twin-shaft mixer, which is self-falling type bipyramid reversed discharging concrete mixing machine.
    Aggregate batching and transferring is automatic and precise;

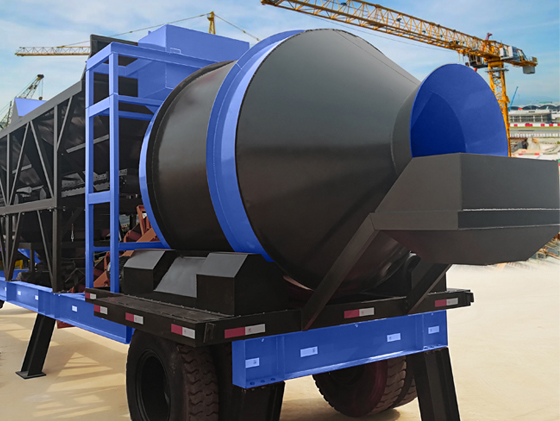

    Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
    The whole plant chassis can be moved easily, don't need to be separated and assembled;
    This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
    Features Of YHZM/YHZS Mobile Concrete Batching Plant:
    0
    Rapid and easily to assemble and disassemble, conveniently to transport.
    0
    All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
    0
    The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
    0
    For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
    0
    Top-quality configuration, high reliability, accurate measurement, easy operation.
    0
    The main electric components on concrete mixer reducers, scale load cells and control system are famous brands, which can reduce the failure rate and increase the scale accurate of the equipment.

    mobile concrete batching plant
    Principles of Mobile Concrete Batching Plant:
    Mobile concrete batching plant is consist of aggregate loading system, electric auto-measurement system. The core of the whole system is the auto-measurement controlled by computer, which will operate the feeding quantity of cement, sand, gravel, keep the mixture ratio of concrete strictly, to ensure the production quality.
    The system works by high-tech of mechanical and electrical integration, establish the auto-running of electronic weighing and feeding trolley and chain procedures. It will also effective organized the generally used machinery in the construction enterprises, such as the concrete mixer, engineering vehicles, belt conveyors, etc, play their best performance.
